Row-Reordering in API and Grid

This guide will walk you through modifying an existing entity and its DataGrid to allow the admin user to re-order the entries using drag-and-drop.

This guide assumes the existing API and Admin were created using the API Generator and Admin Generator. A detailed guide on this is available under Generate Grid Form View.

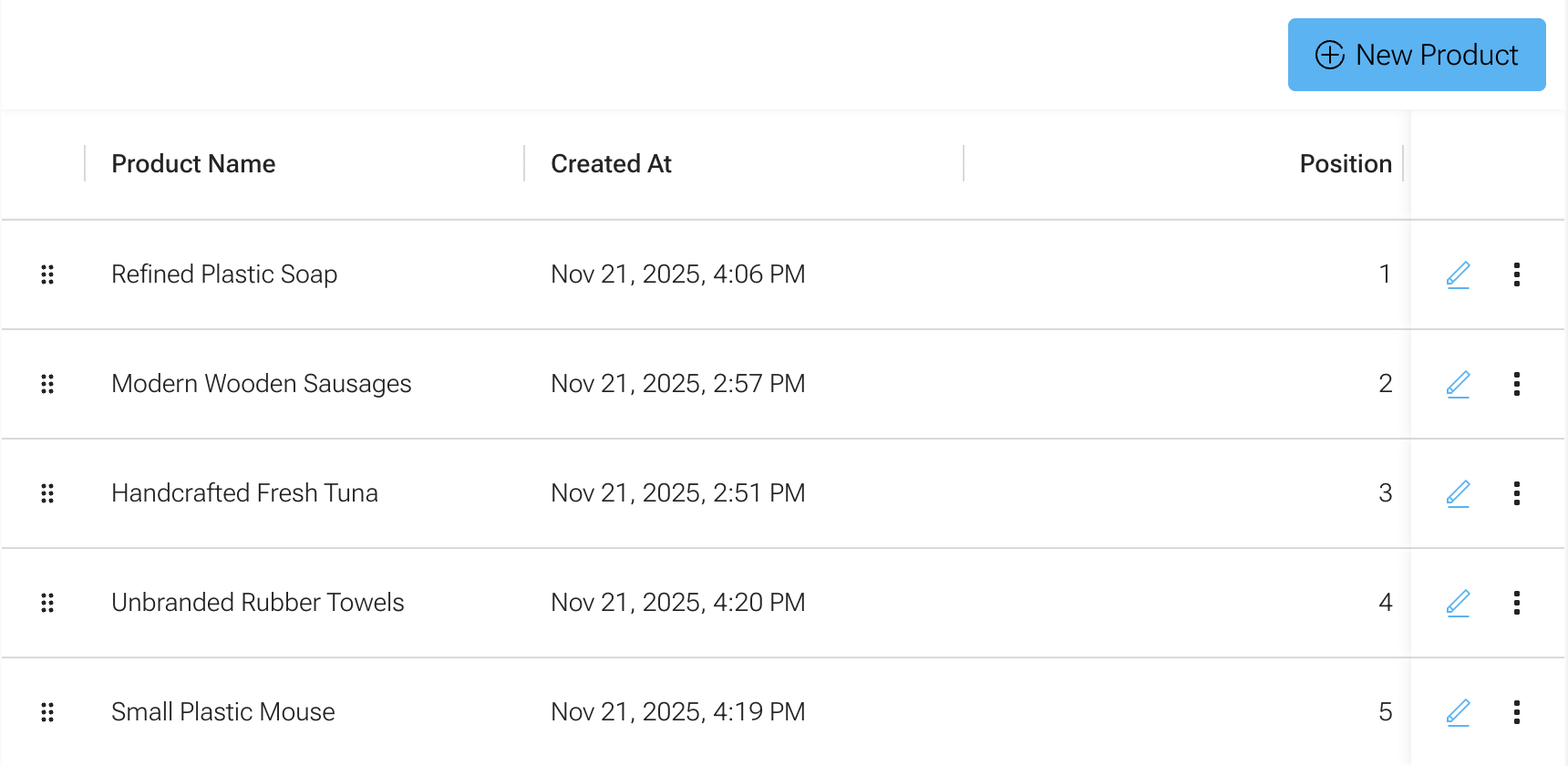

Grid with row reordering

Updating the entity​

In the entity, simply add the magic position field. See its documentation for more information.

@Field(() => Int)
@Property({ columnType: "integer" })
@Min(1)
position: number;

Migrating the database​

Generate and run a new migration for the field:

npm --prefix api run mikro-orm migration:create
npm --prefix api run mikro-orm migration:up
warning

If entries already exist in the database, you may need to modify the generated migration to set the position field to an initial value. The following example sets the position based on the creation date.

override async up(): Promise<void> {
    this.addSql(`alter table "MyEntity" add column "position" integer;`);
    this.addSql(
        `update "MyEntity" set "position" = numbered_myEntities.row_num from (select id, row_number() over (order by "createdAt") as row_num from "MyEntity") numbered_myEntities where "MyEntity".id = numbered_myEntities.id;`,
    );
    this.addSql(`alter table "MyEntity" alter column "position" set not null;`);
}

Update the module​

Once the API of the entity has been regenerated, a new MyEntity.service.ts file should be present in the CrudGenerator's targetDirectory. This service needs to be included in your module's providers.

@Module({
    // ...
    providers: [
        // ...
        MyEntityService,
    ],
})
export class MyEntityModule {}

Updating the Grid generator config​

In your .cometGen.ts file, add the rowReordering property to the grid config.

export const MyEntityGrid: GridConfig<GQLMyEntity> = {
    // ...
    rowReordering: {
        enabled: true,
    },
};

After regenerating the grid, you should be able to drag-and-drop the entries to change their position using the grab handle.
