Admin Generator create DataGrid

The Admin Generator is a powerful tool to generate a complete CRUD interface for your entities. We will show you how to create a DataGrid with the Admin Generator.

Generate DataGrid​

To generate a DataGrid with the Admin Generator, you have to create a .cometGen.ts file. Those files are used by the Admin Generator to generate different kinds of interfaces (DataGrids or Forms). Create a new file CustomerGrid.cometGen.ts in the admin/src/customer directory with the following content:

import { future_GridConfig as GridConfig } from "@comet/cms-admin";
import { GQLCustomer } from "@src/graphql.generated";

export const CustomerGrid: GridConfig<GQLCustomer> = {
    type: "grid",
    gqlType: "Customer",
    columns: [
        { type: "text", name: "id" },
        { type: "text", name: "firstName" },
        { type: "text", name: "lastName" },
    ],
};

The @comet/cms-admin has types available for all the different components that can be generated. The GridConfig type is used to define the configuration of the DataGrid. The GQLCustomer got created in the section before, with the crud generator. The GQLCustomer type is the GraphQL type that will be used to guarantee type safety. The columns array defines the columns of the DataGrid. Each column has a type, name, and other properties.

Run Admin Generator​

Unfortunately, there is no watch mode available for the Admin Generator. To generate the DataGrid, you have to run the Admin Generator manually. This will delete all already generated files and generate them again.

Run the following command:

cd admin
npm run admin-generator

The admin-generator script is configured in admin/package.json and will execute the admin generator binary.

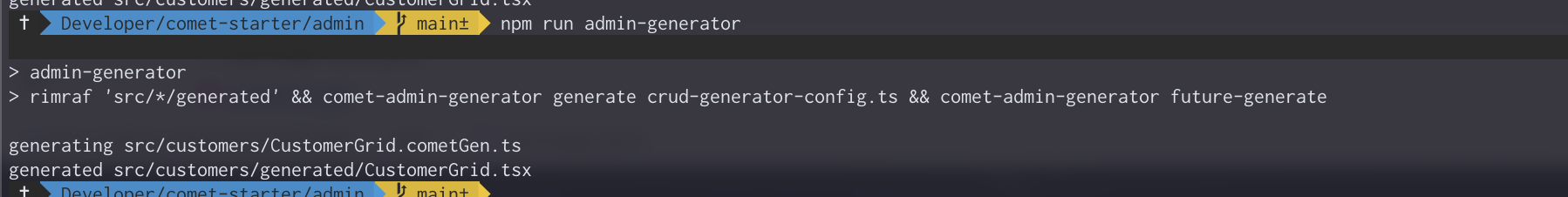

AdminGeneratorCLI

Two files will be generated in the admin/src/customers/generated directory. The CustomerGrid.tsx and the CustomerGrid.generated.ts. The CustomerGrid.tsx is the React component that will render the DataGrid. The CustomerGrid.generated.ts has related types and interfaces from the GraphQL Api.

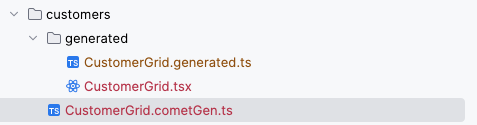

CustomerGridDirectoryStructure

The component is ready to be used in the application. Simply use the generated component somewhere in your React Application:

src/customers/CustomerPage.tsx

import { StackMainContent } from "@comet/admin";
import { CustomersGrid } from "@src/customers/generated/CustomerGrid";
import { FunctionComponent } from "react";

export const CustomerPage: FunctionComponent = () => {
    return (
        <StackMainContent fullHeight>
           <CustomersGrid />
        </StackMainContent>
    );
};

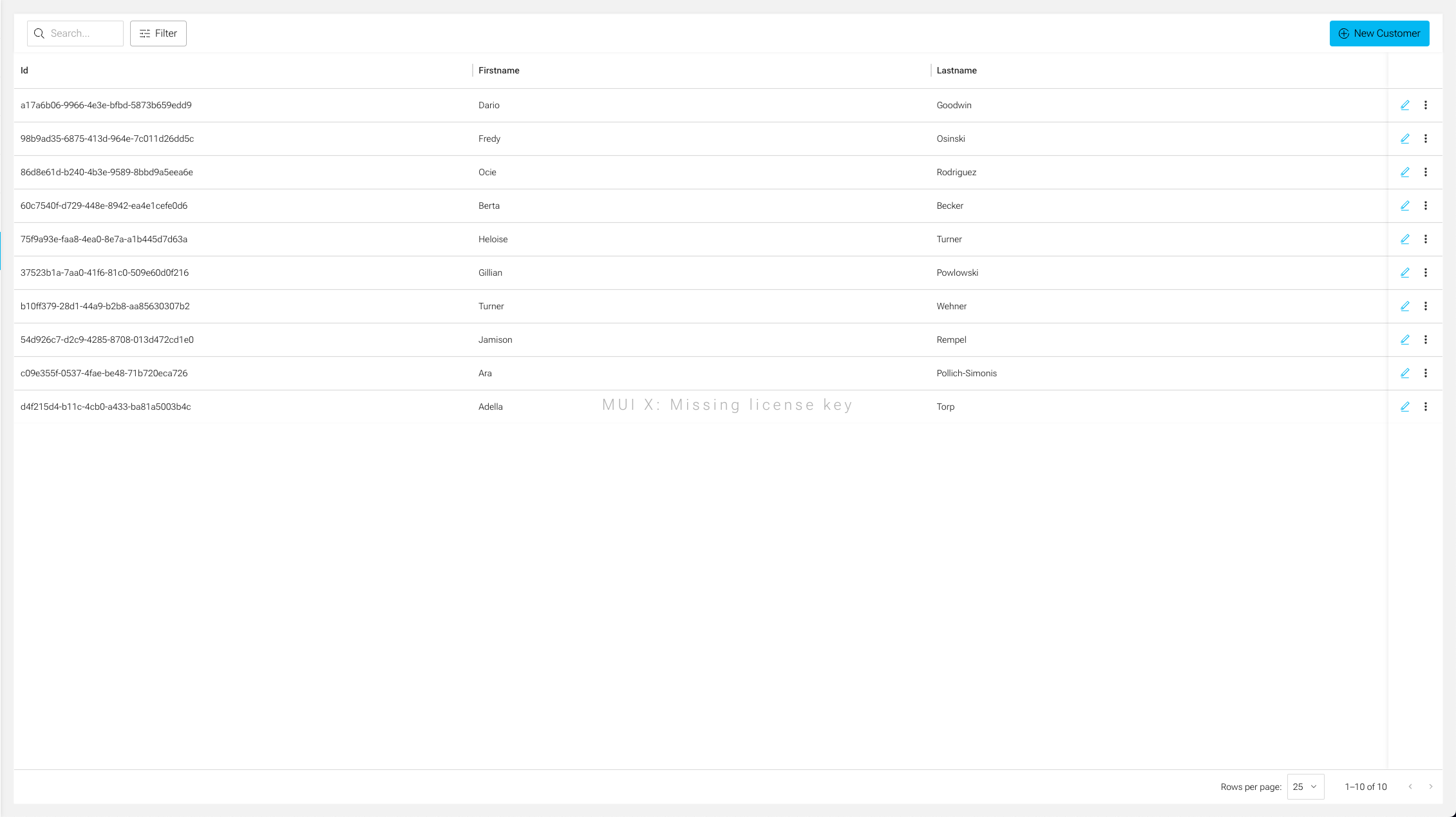

The generated CustomerGrid will look like this:

CustomerGrid
